Target audience

  • Supplier organizations;
  • Supplier warehouse organizations.

Purpose

Webhooks intend to provide an efficient way of data synchronization between Floriday and linked systems. They are intended to supplement the polling of the public API, not as a replacement.


Brief

  • A broadcasted event relates to 1 new or modified resource (hereinafter referred to as 'Aggregate' );
  • An event does not contain any content information from the aggregate, but only the ID. The recipient of the event must retrieve the data from Floriday itself via a call on the API;
  • For every adjustment of the aggregate - ie when Floriday increases its sequence - an event is sent out. It is conceivable that more events will be output - but with a minimum of one for each sequence increment;
  • The customers themselves remain responsible for keeping the data synchronized; webhooks are only an extra tool.

Guidance

  • A subscription to webhooks can be registered per Organization(ID), including the URL to which the events should be sent;
  • The event model is always the same. A distinction is made between AggregateTypes and EventTypes (see below);
  • The customer must filter events himself (if desired). It is not possible to subscribe to specific events;
  • The implementation is not versioned. AggregateTypes and EventTypes can be extended. Existing types will not be changed;
  • The responsibility of synchronization of data remains at the Supplier ERP and the supplier ERP needs to synchronize the resources accordingly;
  • As an additional service events will be posted at the Supplier ERP callbackURL;
    • Floriday does not guarantee delivery of events;
  • The responsibility of synchronization of data remains at the Supplier ERP and the supplier ERP needs to synchronize the resources accordingly.

Summary

An overview of the different webhook types can be found below. The relationship between the state of the aggregate and the events are explained in the state diagrams in the next section.

Webhook Aggregate TypeWebhook Event TypeDescription
BATCHCREATEDA new batch has been created.
BATCHQUANTITY_CHANGEDThe quantity of which the batch consist has been adjusted
BATCHCANCELLEDA batch is removed (the quantity has been set to 0)
SALESORDERACCEPTEDA SalesOrder has been approved
SALESORDERREJECTEDA SalesOrder is rejected due to a financial validation
SALESORDERCANCELLEDAn ACCEPTED order can be canceled by a user (within the cancellation period).
A COMMITTED order can only be cancelled at clock presale if the batch is not auctioned, or from a correction.
SALESORDERCOMMITTEDAn order is fully approved and may be continued for logistical processing.
SALESORDERPRICE_UPDATEDAs soon as a price (due to dynamic delivery costs) has been adjusted
SALESORDERCORRECTEDOnce a correction has been made in the SalesOrder
DELIVERYORDERCREATEDThere is a new delivery order
DELIVERYORDERREQUEST_CHANGEDFulfillment request added, deleted or changed to the delivery order
DELIVERYORDERFULFILLMENT_CHANGEDThe fulfillment of (part of) a fulfillment request has been changed.
DELIVERYORDERCANCELLEDA delivery order has been deleted
FULFILLMENTORDERSUBMITTEDThere is a new (unprocessed) fulfillment order
FULFILLMENTORDERACCEPTEDThe processing of the FFO was successful
FULFILLMENTORDERREJECTEDThe processing of the FFO was not successful. The FFO can be updated in the front end.
FULFILLMENTORDERCORRECTEDIf there has been a correction to, for example, the logistics resources.
FULFILLMENTORDERCANCELLEDThe processing of the FFO was not successful. The FFO can be updated in the front end.


State Diagrams

Below is an overview of the flow and the associated events for each aggregate. The events sent by Floriday are shown here in blue in bold. A description of these events can be found in the overview above.



BATCH:

346

SALES ORDER:

903

DELIVERY ORDER:

584

FULFILLMENT ORDER:

897

Implementation model

1818

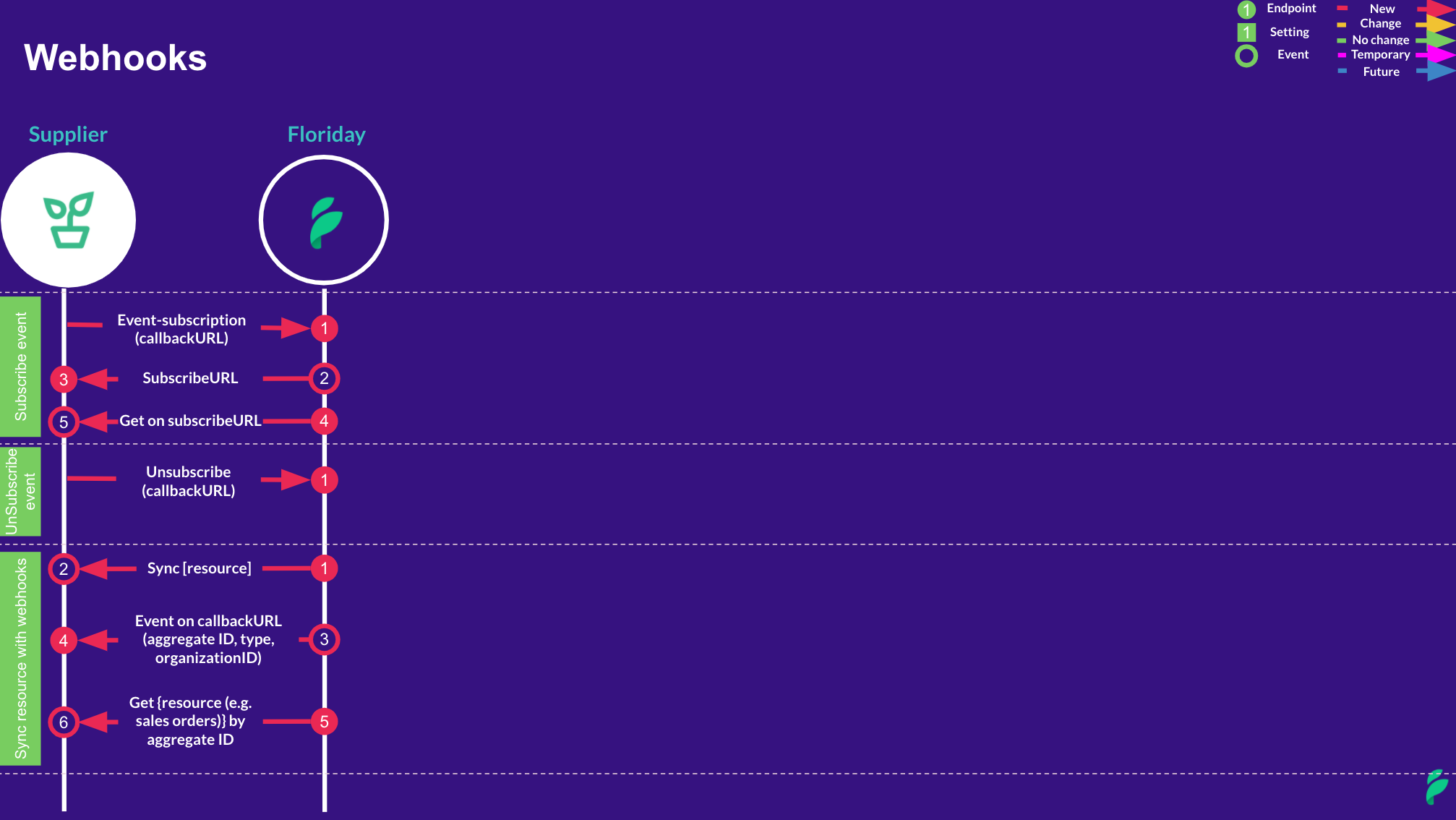

Interaction model

2060
